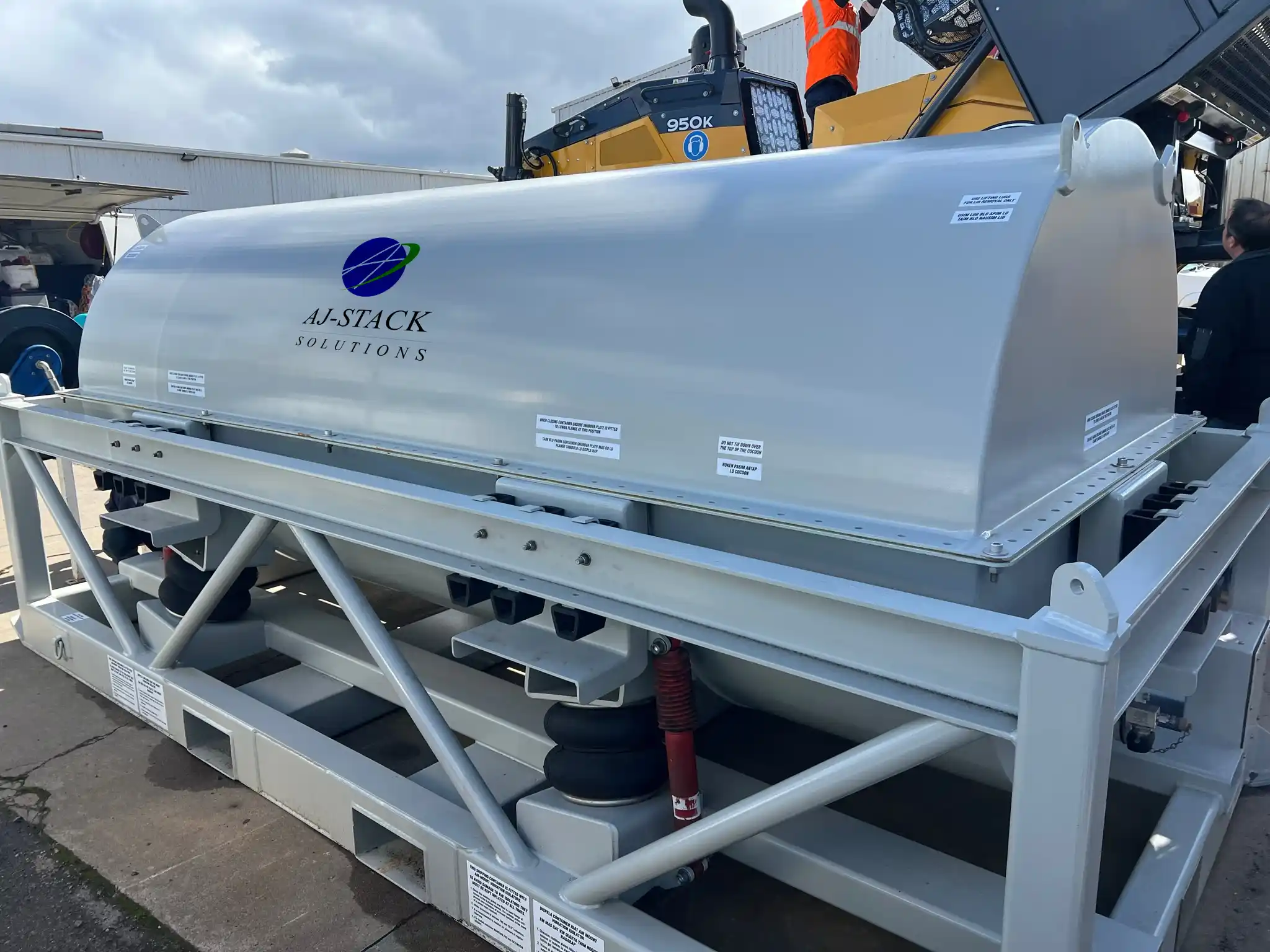

Transportation Storage Container (TSC)

TSC is engineered to ensure that equipment remains protected during both shipment and long-term storage through several advanced features.

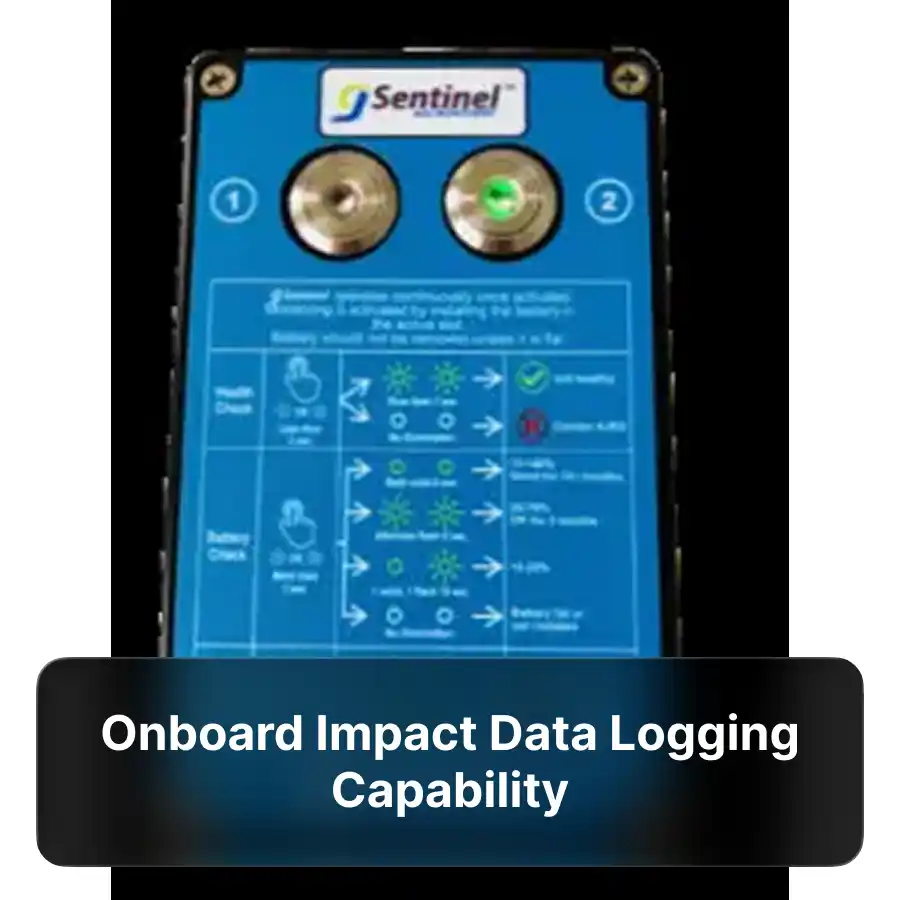

• Data Logging System: Every container comes equipped with a comprehensive data logging system that records transit activity in high detail over extended periods.

• Tri-axial Accelerometer: This sensor is attached to the sprung components of the container to monitor and record a full impact history during shipment and storage.

• Analytical Capabilities: The collected data allows for a detailed log of load experience, providing peace of mind by verifying that the machinery remained within safe parameters.

• Customisable Suspension: The container features a suspension system that can be matched to specific attenuation targets based on the sensitivity of the machine being transported.

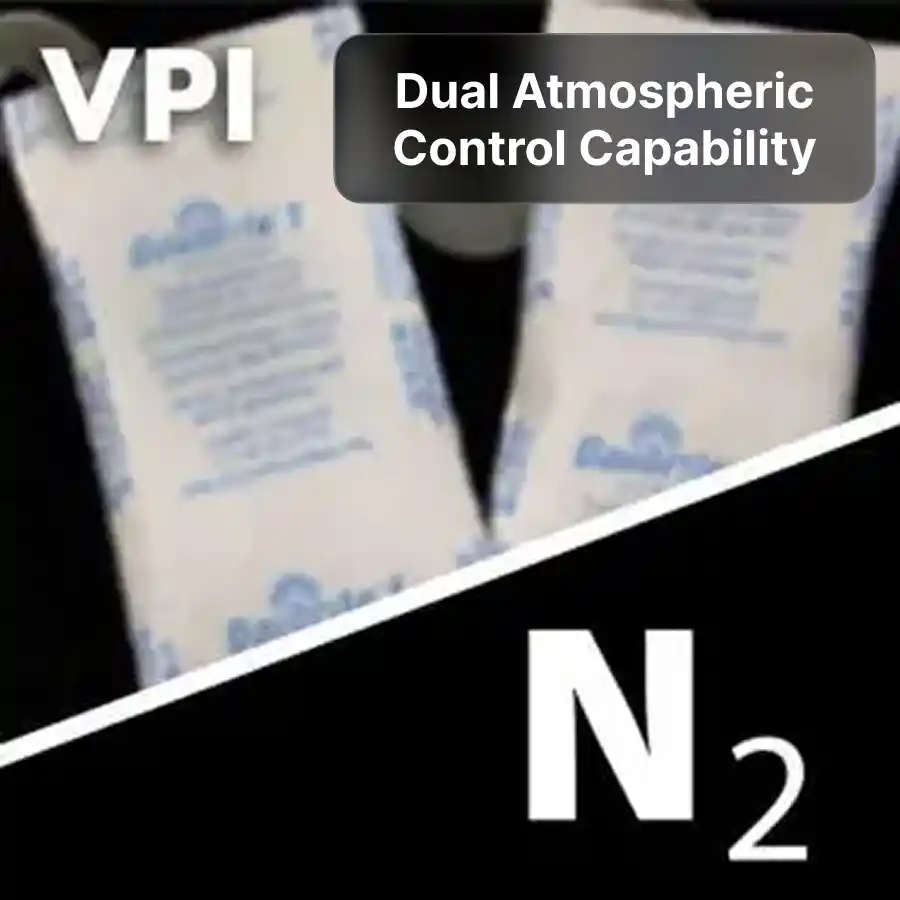

• Corrosion Inhibitors: For long-term preservation, the TSC can be fully customised to include nitrogen or vapour phase corrosion inhibitor mediums, ensuring the internal environment remains stable and the machinery does not degrade.

• Scalable Design: The design is flexible enough to be scaled for both larger and smaller machines while maintaining high levels of protection.

‍

Features

• Battery life of at least 500 days.

• Operational temperature range: -20°C to +75°C.

• Alarm set point between 1g and 20g.

• Simple display of battery charged state via button press.

• Maintains accurate time and date.

• Communication via USB.

• Display if alarm set point has been exceeded via button press.

• Capable of recording several thousand events where the set point has been exceeded

‍

The AJSS TSC is designed, developed, engineered and manufactured in Australia and supports various government initiatives to re-invigorate local manufacturing.

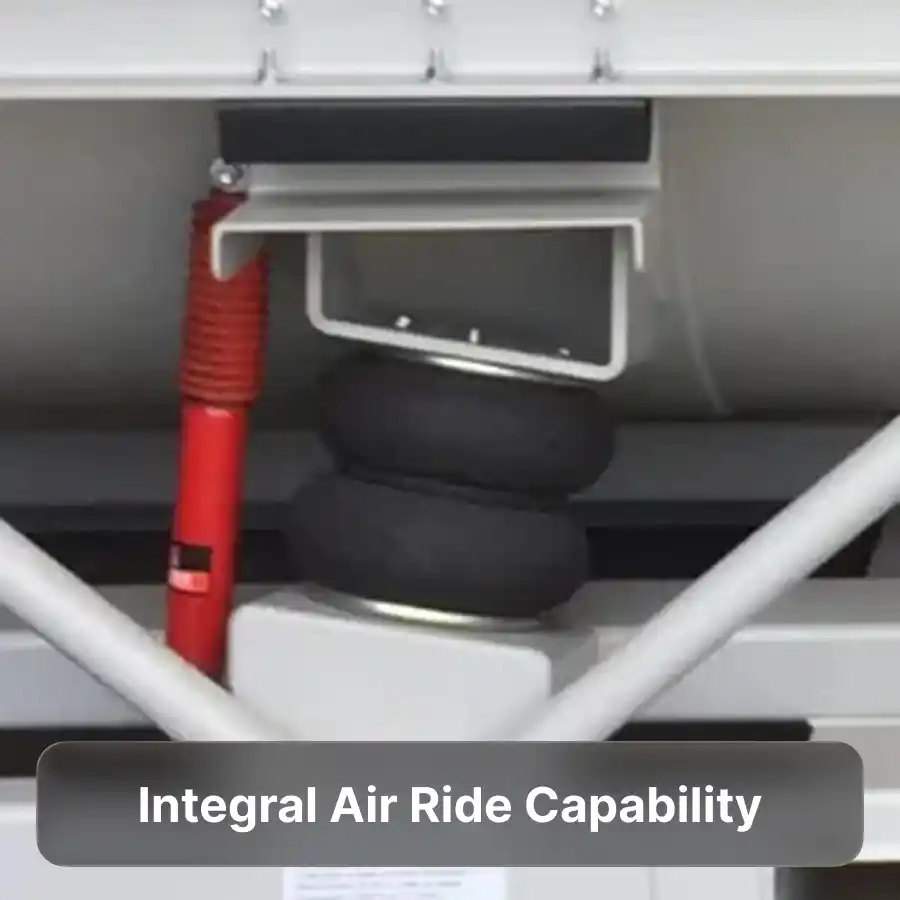

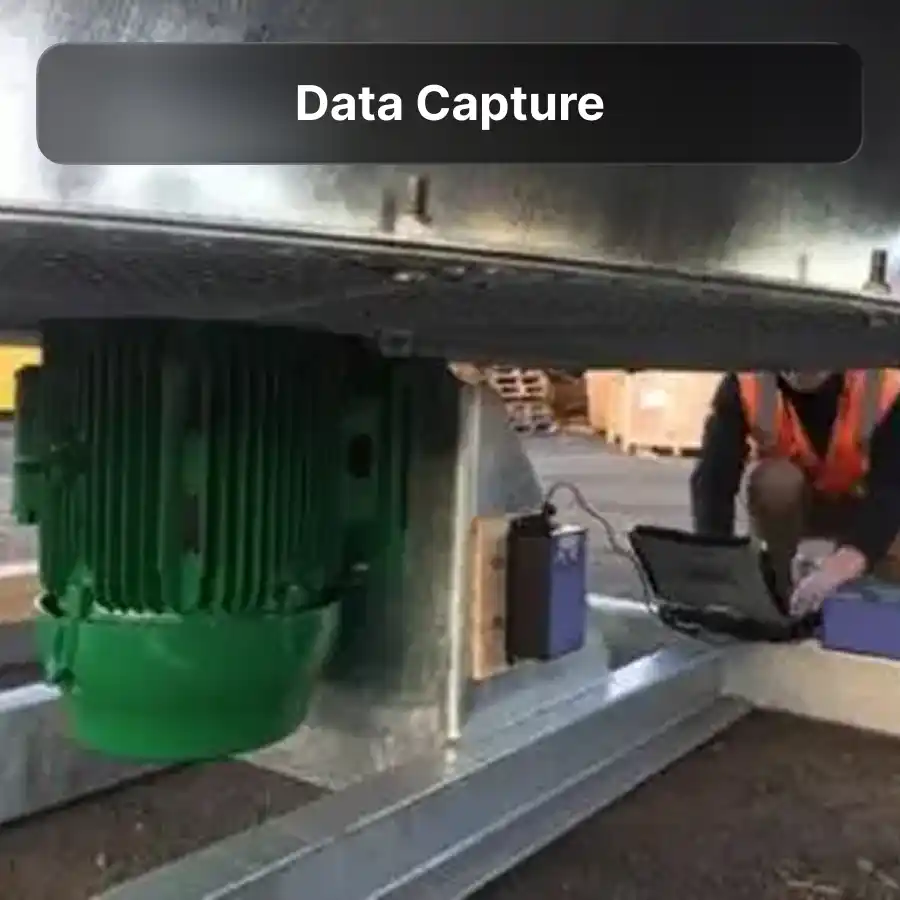

While many products preserve your assets and machinery in storage, few are designed to protect during transportation and storage. The AJSS TSC integrated air ride design combines the use of air springs and shock absorbers to protect your assets in transit with the added safeguard of long haul tri axial impact recording capability. Data is recorded and can be downloaded following each journey. Analytical tools provide a record of the impacts above a pre-set threshold and a history of when the shipment is in motion. The option of Vapor Phase Inhibitor and Nitrogen Pressurization provides the customer the added peace of mind their assets are preserved and protected while in long term storage.

The TSC was originally designed for the transportation and long-term storage of turbine engines, however AJSS TSC design concept can be customised to suit any form of machinery including centrifugal compressors, compressor bundles and turbine rotors.

The TSC is designed to provide full protection of turbo-machinery during transportation and protects against corrosion during long term storage. The unique design provides a  high level of confidence that machinery will arrive in good condition and remain protected until required. The TSC solution reduces the risk of wasted downtime and reduces risk in respect to insurance premiums.

The sealed storage environment is protected with a Vapour Corrosion Inhibitor emitter which provides exposed surfaces with a protective barrier against corrosion. Turbomachinery uses precision bearings and seals which can be damaged when subjected to excessive impact loads due to transport over rough roads or during sea freight passages. Damage to these can lead to unplanned outages and premature equipment change-outs, which carry cost penalties. Incorrect storage can lead to corrosion problems, particularly in humid / tropical / coastal environments.

The TSC has the option of nitrogen or vapour phase corrosion inhibitor systems and is designed to suit multiple industry applications
